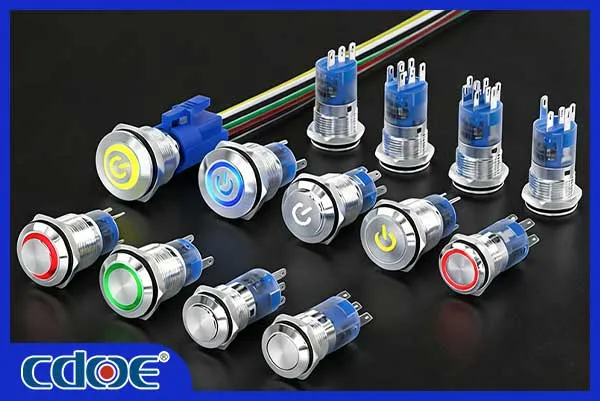

How to Choose the Right Metal Push Button Switch for Your Project

Choosing the right metal push button switch is not just about selecting a size or voltage. Different technologies, circuit logic, environmental conditions, and application requirements all influence the final decision.

This complete guide will walk you through a structured selection process to help you confidently choose the best switch for your project.

Part 1 – Understanding the Technology Framework

1. Different Technology Types: Mechanical vs Touch vs Piezo

Type How It Works Mechanical Parts Main Advantage Best For
Mechanical Physical press activates internal contacts Yes Cost-effective and reliable Industrial equipment
Touch Capacitive sensing detection No No mechanical wear Medical & smart devices
Piezo Pressure generates electrical pulse No traditional contacts Extreme durability Outdoor & harsh environments
Mechanical, touch, and piezo switches represent different internal technologies. They are not interchangeable classifications but structural differences.

2. Mechanical vs Touch vs Piezo: Quick Comparison

Feature Mechanical Touch Piezo
Mechanical Life 500K–1M cycles Very long 10M+ cycles
Waterproof Level IP65–IP67 Up to IP67 Up to IP68
Impact Resistance Medium Medium Very High
Cost Low Medium High

3. Understanding NO vs NC (Circuit Type)

Type Default State When Pressed Common Use
Normally Open (NO) Open Closes circuit Start button
Normally Closed (NC) Closed Opens circuit Emergency stop

NO and NC define electrical logic and can apply to mechanical, touch, or piezo switches.

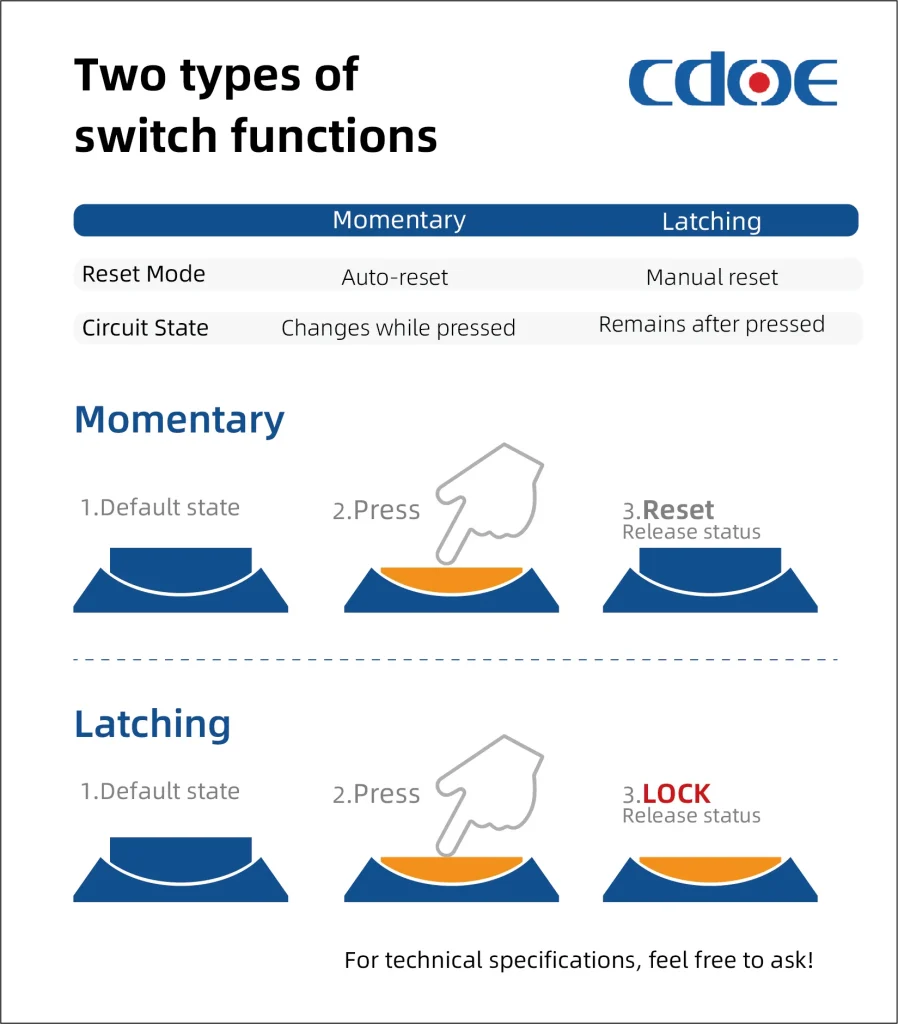

4.Choose the Correct Operation Type

The first step is understanding how the switch should function.

Feature Momentary Switch Latching Switch
Operation Active only when pressed Press once ON, press again OFF
Common Use Doorbells, reset buttons, horns Power control, equipment panels
User Interaction Requires continuous pressing No need to hold
Best For Trigger functions Main power control

Recommendation: Choose momentary for signal triggering and latching for continuous power control.

Part 2 – Technical Specifications

5. Select the Right Mounting Size

Measure your panel cutout diameter and thickness before selecting the switch.

6. Verify Electrical Ratings

Always select ratings equal to or higher than your system requirements.

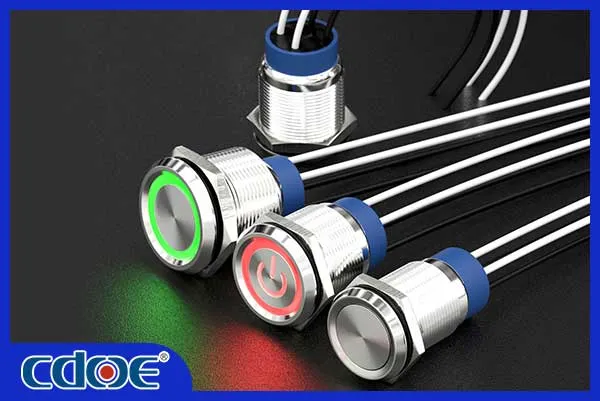

7. Compare IP Ratings (Waterproof Level)

IP Rating Protection Level Recommended Use
IP65 Dust-tight, water jets Indoor industrial
IP67 Temporary immersion Outdoor equipment
IP68 Continuous immersion Marine applications

8. Choose Durable Materials

Material selection impacts corrosion resistance and lifespan:

For public or high-impact environments, consider anti-vandal designs with high mechanical life ratings.

9. Decide on Illumination

Illuminated switches enhance visibility and user experience.

Ensure the LED voltage matches your system power supply.

10. Terminal Type and Wiring

Select based on installation convenience and production requirements.

Part 3 – Application-Based Selection Guide

Application Recommended Type Key Requirement

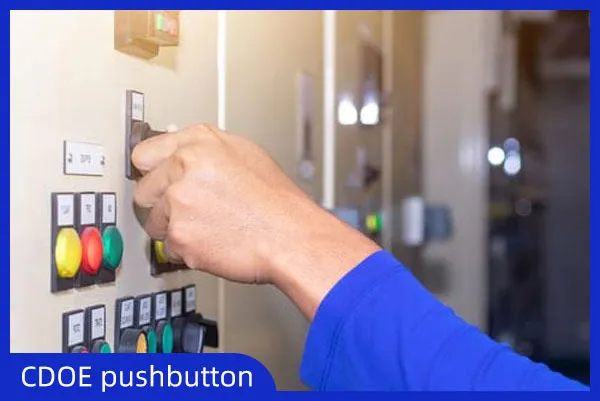

Industrial Control Panel Mechanical, NO, Latching Cost & reliability
EV Charging Station Mechanical or Piezo, IP67+ Outdoor durability
Medical Equipment Touch, Momentary Hygiene
Marine Equipment Piezo, IP68 Waterproof
Access Control Anti-vandal Mechanical or Piezo Impact resistance

Conclusion

When selecting a metal push button switch, always evaluate:

A structured evaluation ensures long-term performance, safety, and reliability.
